This ultra thin recessed LED Panel is absolutely perfect for tightspaces, soffits and insulated and dropped ceilings.

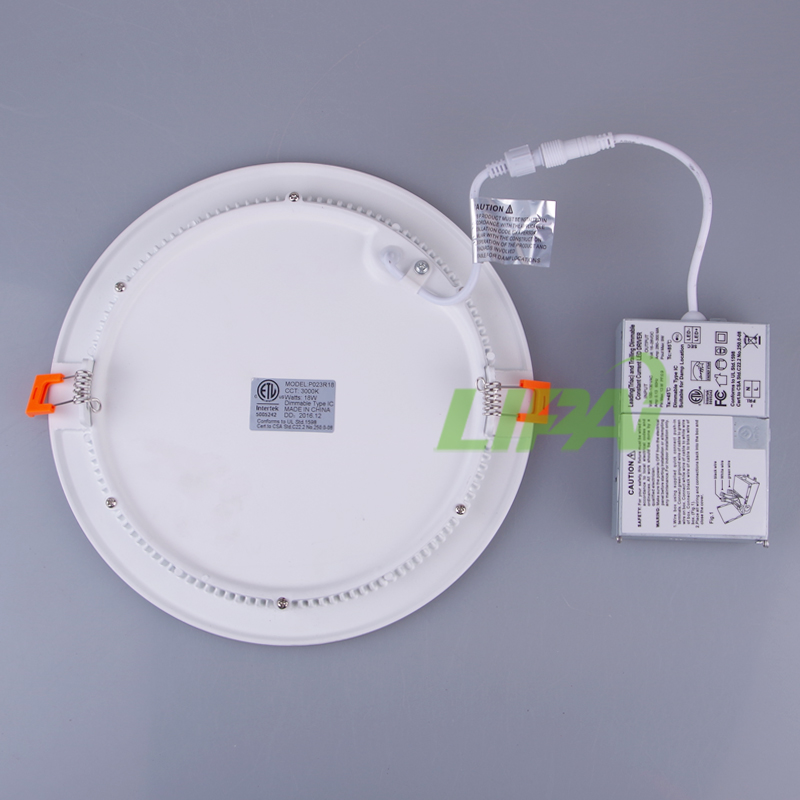

Recessed 4" Round LED panel light with integral driver Inconnection box. Fits where no other recessed fixture can.
This LED is 20watts and replaces a 120 watt halogen
Save up to 80% energy for same light output.
The thin Panel profile with spring clips allows for quick andeasy installation.
Ideal for confined spaces and suitable for damp locations.
Model No： | P023R18 |
Power： | 20W |
Chips： | Edison 2835 |
Available Color Temperature： | 2700K 3000K / 4000K 5000K 5700K |
CRI： | >80 |
Luminous Efficacy： | 70 / 80LM /W |
Beam Angle ： | 110° |
Power Factor： | >0.95 |
Default Driver Input No. (Dimmable)： | 120V AC |
IC Rated Fixture： | Yes |
Air tight： | Yes |
Driver Type： | Constant Current |
IP grade： | Damp Location |
Operating Temperature Farenfeit： | - 40°F to +104°F |
Operating Temperature Celcius: | - 40°C to +40°C |
Imperial (cut out)： | 8" ±1/8" |
Imperial (dimensions)： | OD 9" H 1 3/8" |
Body Color： | White、 Black、Brushed Nickel |
Materials： | Aluminum+Guide plate |
Rated Life(hours) | 50000hrs |
Inner package size | 26*24.7*7CM |
Weight/piece | 0.87KG ， |
Certification | cETLus，Energy Star，FCC |
Warranty | 5 Years |
Suitable for：Home Renovations-Living Room,Hallway, Kitchen &Bathroom,Hotels, Libraries, Offices,
Packing
PackingCTNSize:52.5*51.5*39CM
Acarton weight: 18.53KG
20PCS/CTN
Pleaseconfirm the specification and price with our factory!
